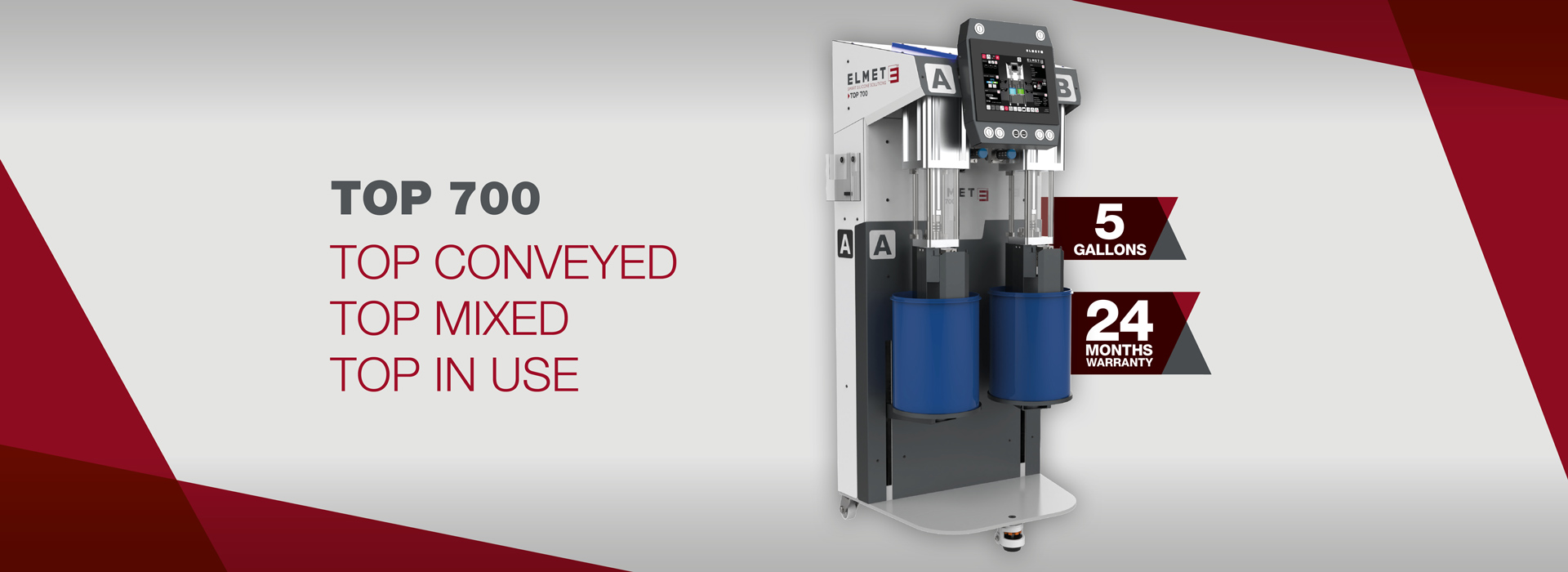

With ELMET dosing systems, process stability is the top priority. The TOP 700 impresses not only with its compact design (the smallest 20-liter system on the market) and cost-effectiveness, but also with its reliable continuity and the outstanding quality of the manufactured parts. With its precise mixing ratio of silicones and additives, the TOP 700 sets a new milestone on the market. It enables precise dosing at the highest level, leading to outstanding results.
► Maximum process stability thanks to integrated high-precision volume counting
VERSATILE IN USE
SAFETY
► Intuitive and simple operation
USER-FRIENDLY
► Air detection
► Dimensions L/W/H: 799 x 600 x 1775 mm, 31.5 x 23.6 x 69.9 inch
► Drum size: 20 Liter
► Drum change: 3 sides (180°) in 2 minutes automatically guided
► Usable materials [Pas]**: 0,001 to 2000

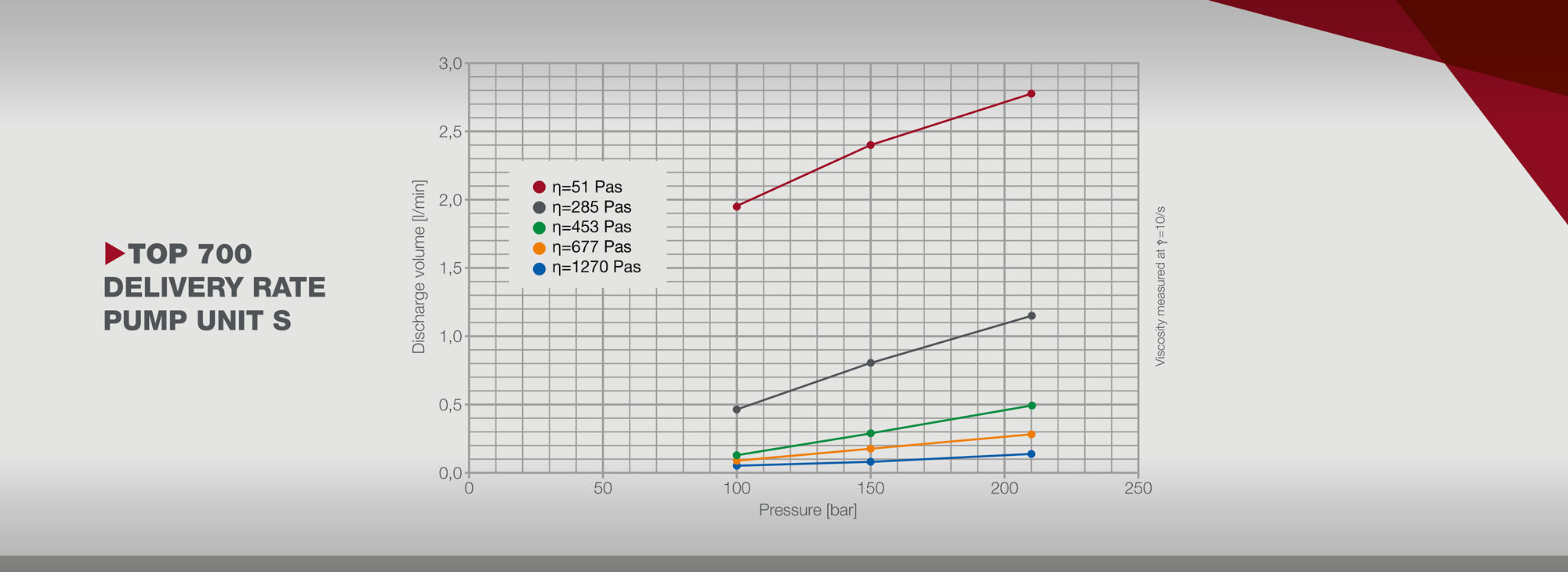

► Discharge rate per component @ 2.7 Pas: >2500 cm³ / min
► Maximum delivery pressure: 210 bar / 3046 psi
► Power supply: 100 - 264 VAC, 4 A
► Air supply: 6 bar – 1000 NL / min (1/2“)
► Additive lines: max. 6
► Mixing elements: 1 Standard to 10 Optional
► Volume counter: Ja
► Certifications: CE, UL, FDA, EMA
► Simultaneous drum emptying (Eco-Mix): Standard
► Process documentation: USB
► Freely selectable mixing ratio (Fix-Mix)
► Shore-Mix
► LSR Select
► Barcode drum recognition
► Wheels
► Customized paint work
► Process documentation OPC UA
► Euromap 82.3
► Remote maintenance via VNC
► Premium Connectivity
► Simplex (two-machine operation)
► Tandem (no production downtime)
In the processing unit, the A and B components are mixed with the pigment or additive streams. The high pressure of the compressed liquid silicone is fl ow-optimized thanks to sophisticated technology and kept at a constant, adjustable discharge level by a pressure limiter. ELMET has perfected this technology so that it can even be used in the extrusion process without any issues. Here too, ELMET is setting a new benchmark.
► Modular design
► Integrated cooling
► Laminar fl ow optimized (no dead corners)
► Simple clamp-connection design
► 45° & 90° connections for easy adaptation to any system
► Up to 6 additive lines can be used per unit
► Simple cleaning
► Minimum material cross-sections with maximum possible throughput
► Economically sophisticated – material minimization in the system
Pigments and additives are valuable parameters in the LIM process. ELMET therefore relies on high-precision pigment and additive lines developed in-house. The dosing is adjusted to the actual measured volume flow of the components. Optional control systems can permanently readjust and thus increase the precision even further.
► Additive container 1 l / 4 l / 20 l
► Volume counter (resolution < 0.1µl/l)
► Simultaneous drum emptying A+B (Eco-Mix) or freely selectable mixing ratio (Fix-Mix)
► Barcode drum detection
► Remote control via VNC
► OPC-UA | Euromap 82.3
► Fix-Mix mixing ratio
► Premium Connectivity package incl. app for iOS & Android
► Elkem LSR Select
